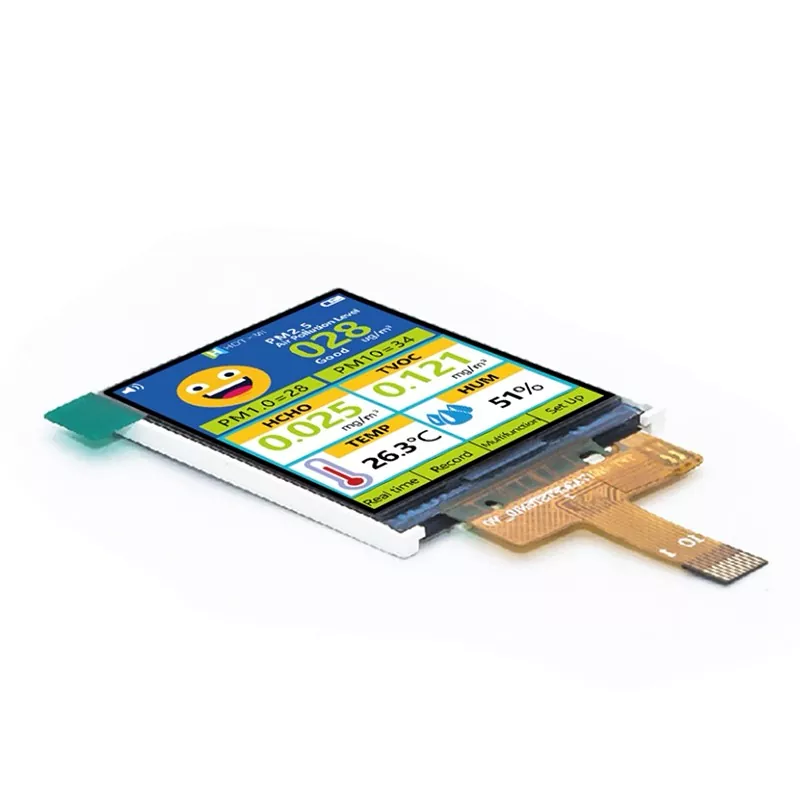

Modul 1,77 inci 128x160 MCU TFT

Victronix adalah produsen dan pemasok modul TFT profesional di Cina. Kami telah berada di bidang ini selama 18 tahun. Dan kami telah mengembangkan beberapa model sejauh ini. Modul TFT MCU 1,77 inci 128x160 ini memiliki fitur resolusi HD 128 × 160 piksel, mendukung kedalaman warna 262k, dilengkapi dengan pengontrol ILI9163V dengan antarmuka MCU 8-bit, kompatibel dengan mode komunikasi paralel/serial. Modul TFT Victronix 1.77inch ini sesuai dengan standar lingkungan ROHS untuk memastikan penggunaan aplikasi yang aman.

Model:VXT177SSI-02

mengirimkan permintaan Unduh PDF

Deskripsi Produk

What are the competitive advantages of the Victronix 1.77 inch 128x160 MCU TFT Module in the competitive situation of TFT Module manufacturers? It features a 128(RGB)×160-pixel resolution with 262K colors and a 300:1 contrast ratio, and this RoHS-compliant module produces crisp visuals with wide viewing angles (55°at 12 o'clock, 65°at 3/6/9 o'clock). Besides, a 96-hour thermal cycling and humidity test ensures perfect operation in extreme temperatures from -20°C to +70°C (-30°C to +80°C storage). In addition, it has a high brightness of 220 cd/m², and its backlight lifetime is up to 30,000 to 50,000 hours, ensuring that it can be used for clarity and hours of use in different lighting situations. The most important is that we can produce customized products to meet the needs of our customers.

This 34.70 x 46.70 x 2.60mm compact size TFT Module is suitable for Medical Monitoring Devices, Automotive Instrument Clusters, Industrial Control Panels, Portable IoT Terminals, and Smart Home Interfaces.

General Specifications

LCD Parameter

Item	Contents	Unit	Note
LCD Type	TFT	-
Display color	262K
Viewing Direction	12	O'Clock
Operating temperature	-20~+70	℃
Storage temperature	-30~+80	℃
Active Area(W×H)	28.03x35.04	mm
Number of Dots	128x160	dots
Controller	ILI9163V	-
Power Supply Voltage	2.8	V

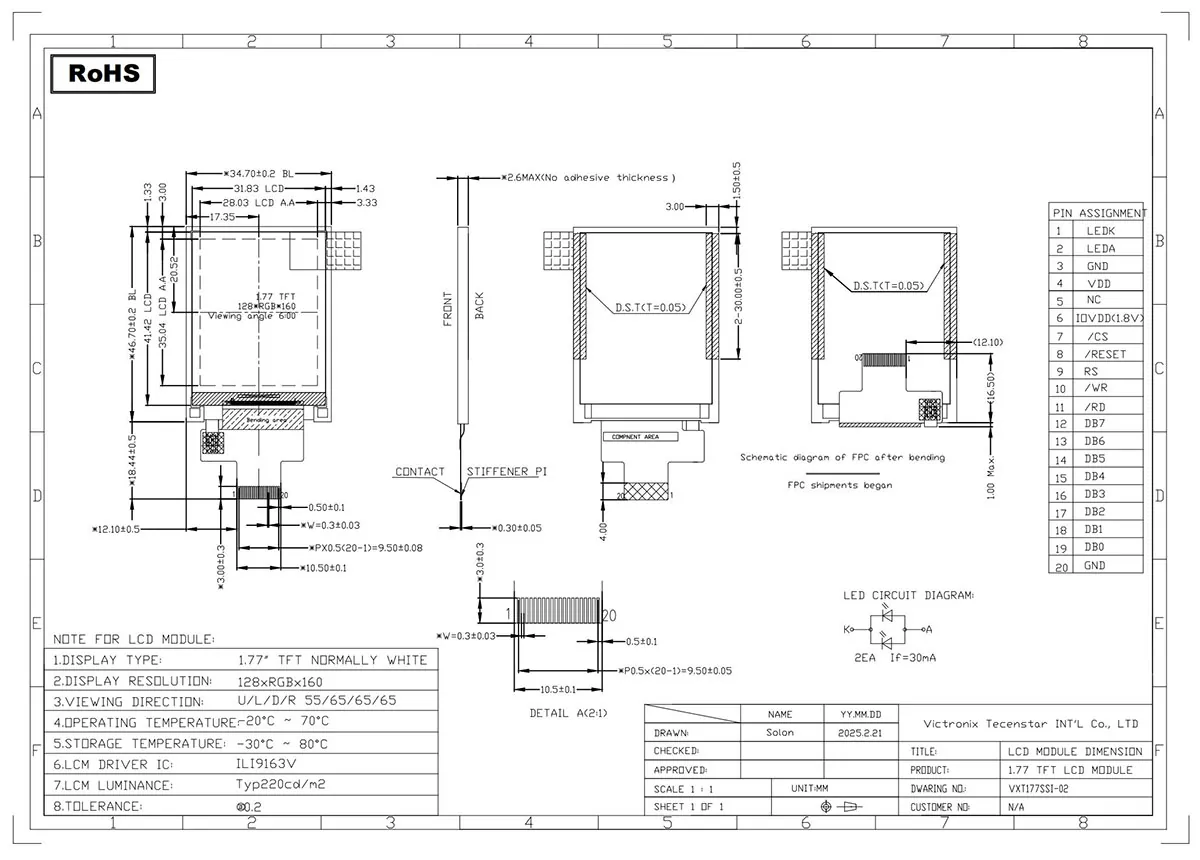

Outline Dimensions	34.70x46.70x2.60	mm
Backlight	2x1-LEDs(white)	pcs
Interface	8BIT MCU	-
